Streaming AI Responses in Go with AgenticGoKit

Streaming makes AI feel alive—tokens show up instantly, long tasks feel responsive, and multi‑step workflows become explainable as they run. In this post, we’ll build two streaming experiences with AgenticGoKit:

• A minimal “simple-streaming” chat
• A sequential multi‑agent “streaming_workflow” with step-by-step progress

We’ll also cover when to use streaming, why it helps, and a few gotchas and tips.

What is streaming and why it matters

Instead of waiting for the full response, streaming lets you consume output as it’s generated (token‑by‑token or chunk‑by‑chunk). That enables:

• Real‑time feedback: Users see progress immediately
• Better UX for long tasks: No “blank screen” pause
• Step visibility in workflows: Know which agent/step is running
• Early assessment: Skim partial output and course‑correct sooner

Under the hood, AgenticGoKit vNext exposes a Stream you can iterate over, with multiple chunk types like text deltas, metadata, tool calls, and final completion signals.

Prerequisites

• Go installed and working in this repo
• Ollama running locally (default http://localhost:11434)
• Model: gemma3:1b
• Repo paths in this post are relative to the project root

Pull the model if needed:

ollama pull gemma3:1b

Alternatively, you can use OpenAI or Azure OpenAI instead of Ollama by setting API keys and pointing your agent config to those providers:

# OpenAI
$env:OPENAI_API_KEY = "<your-openai-api-key>"

# Azure OpenAI
$env:AZURE_OPENAI_KEY = "<your-azure-openai-key>"
# Your Azure Base URL typically looks like:
# https://<your-resource-name>.openai.azure.com/

For a deeper dive into APIs and options, see core/vnext/STREAMING_GUIDE.md.

Part 1: Minimal simple-streaming

The example lives here: examples/vnext/simple-streaming/main.go.

It creates a small chat agent and prints tokens as they arrive:

// Start streaming
ctx, cancel := context.WithTimeout(context.Background(), 30*time.Second)
defer cancel()

stream, err := agent.RunStream(ctx, prompt)
if err != nil {
    log.Fatalf("Failed to start streaming: %v", err)
}

// Print tokens as they arrive
for chunk := range stream.Chunks() {
    if chunk.Error != nil { fmt.Printf("\n❌ Error: %v\n", chunk.Error); break }
    switch chunk.Type {
    case vnext.ChunkTypeDelta:
        fmt.Print(chunk.Delta) // token-by-token
    case vnext.ChunkTypeDone:
        fmt.Println("\n\n✅ Streaming completed!")
    }
}

// Always check the final result
_, _ = stream.Wait()

Run it:

cd examples/vnext/simple-streaming
go run .

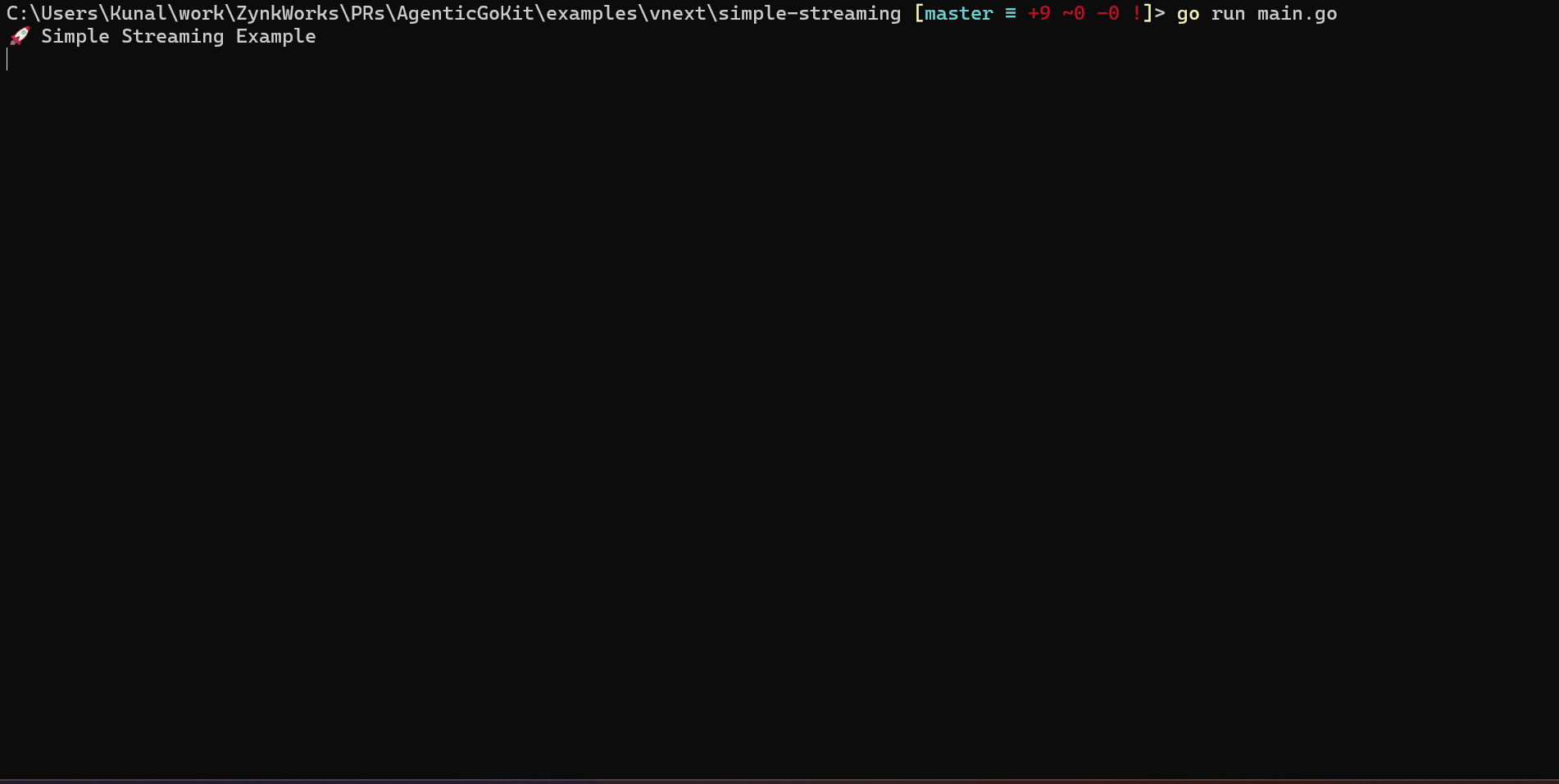

You’ll see something like:

Notes:

• The example uses Ollama with gemma3:1b. Adjust the model/provider in the config if needed.
• Always call stream.Wait() after consuming chunks to surface any trailing errors.

Part 2: Multi‑agent streaming workflow

Now, let’s level up with a sequential, two‑agent workflow that streams each step in real time. Code: examples/vnext/streaming_workflow/main.go.

We’ll create two specialized agents—Researcher and Summarizer—and wire them into a vNext Workflow. Each step streams its own tokens and emits metadata so you know what’s happening.

Defining agents

func CreateResearcherAgent() (vnext.Agent, error) {
    return vnext.QuickChatAgentWithConfig("Researcher", &vnext.Config{
        Name:         "researcher",
        SystemPrompt: "You are a Research Agent...",
        Timeout:      60 * time.Second,
        LLM: vnext.LLMConfig{ Provider: "ollama", Model: "gemma3:1b", Temperature: 0.2, MaxTokens: 300, BaseURL: "http://localhost:11434" },
    })
}

func CreateSummarizerAgent() (vnext.Agent, error) {
    return vnext.QuickChatAgentWithConfig("Summarizer", &vnext.Config{
        Name:         "summarizer",
        SystemPrompt: "You are a Summarizer Agent...",
        Timeout:      60 * time.Second,
        LLM: vnext.LLMConfig{ Provider: "ollama", Model: "gemma3:1b", Temperature: 0.3, MaxTokens: 150, BaseURL: "http://localhost:11434" },
    })
}

Using OpenAI or Azure OpenAI

Where the Ollama LLM config is defined above, you can swap in OpenAI or Azure OpenAI with minimal changes:

// OpenAI
LLM: vnext.LLMConfig{
    Provider: "openai",
    Model:    "gpt-4",
    APIKey:   os.Getenv("OPENAI_API_KEY"),
}

// Azure OpenAI
LLM: vnext.LLMConfig{
    Provider: "azure",
    Model:    "gpt-4",
    BaseURL:  "https://your-resource.openai.azure.com/",
    APIKey:   os.Getenv("AZURE_OPENAI_KEY"),
}

Notes:

• Keep the rest of the streaming code exactly the same; provider selection is handled via LLMConfig.
• Ensure the appropriate environment variables are set in your shell before running the examples.

Building a sequential workflow

workflow, err := vnext.NewSequentialWorkflow(&vnext.WorkflowConfig{ Mode: vnext.Sequential, Timeout: 180 * time.Second })
if err != nil { log.Fatal(err) }

_ = workflow.AddStep(vnext.WorkflowStep{
    Name:  "research",
    Agent: researcher,
    Transform: func(input string) string {
        return fmt.Sprintf("Research the topic: %s. Provide key information, benefits, and current applications.", input)
    },
})

_ = workflow.AddStep(vnext.WorkflowStep{
    Name:  "summarize",
    Agent: summarizer,
    Transform: func(input string) string {
        return fmt.Sprintf("Please summarize this research into key points:\n\n%s", input)
    },
})

Running with streaming

ctx := context.Background()
stream, err := workflow.RunStream(ctx, topic)
if err != nil { log.Fatal(err) }

for chunk := range stream.Chunks() {
    switch chunk.Type {
    case vnext.ChunkTypeMetadata:
        if stepName, ok := chunk.Metadata["step_name"].(string); ok {
            fmt.Printf("\n🔄 [STEP: %s] %s\n", strings.ToUpper(stepName), chunk.Content)
            fmt.Println("─────────────────────")
        }
    case vnext.ChunkTypeDelta:
        fmt.Print(chunk.Delta)
    case vnext.ChunkTypeDone:
        fmt.Println("\n✅ Workflow step completed!")
    }
}

result, err := stream.Wait() // final success/error

Run it:

cd examples/vnext/streaming_workflow
go run .

What you’ll see:

🚀 vnext.Workflow Streaming Showcase
====================================

🔍 Testing Ollama connection...
✅ Ollama connection successful

🌟 vnext.Workflow Sequential Streaming
=====================================
🎯 Topic: Benefits of streaming in AI applications

💬 Real-time Workflow Streaming:
─────────────────────────────────

🔄 [STEP: RESEARCH] Step 1/2: research
Streaming is a really cool way to access content...

🔄 [STEP: SUMMARIZE] Step 2/2: summarize
Based on the research findings, here are the key points:

🎉 vnext.WORKFLOW STREAMING COMPLETED!

When to use streaming vs. non‑streaming

Without streaming:

User: "Research AI streaming benefits"
System: [Working... 60–90s of silence]
System: [Full results appear all at once]

With streaming:

User: "Research AI streaming benefits"
System: 🔄 [STEP: RESEARCH] … tokens stream live …
System: 🔄 [STEP: SUMMARIZE] … tokens stream live …
System: ✅ Workflow completed

Streaming shines when:

• The task takes more than ~1–2 seconds
• You want visibility into multi‑step progress
• You’re building chat UIs or CLIs where responsiveness matters

Tips, options, and best practices

• Always use contexts with timeouts for cancellation:

  ctx, cancel := context.WithTimeout(context.Background(), 30*time.Second)
  defer cancel()


• After consuming chunks, call stream.Wait() to catch final errors and access the final result
• Need only text? Use text‑only streaming to reduce noise
• For UIs, include metadata to display current step/agent
• Tune buffer size and flush intervals for your UX/perf needs

See core/vnext/STREAMING_GUIDE.md for:

• Chunk types (Text, Delta, Thought, ToolCall, ToolResult, Metadata, Error, Done)
• Stream options: buffer size, thoughts/tool calls, metadata, flush interval
• Utilities: CollectStream, PrintStream, StreamToChannel, AsReader

Troubleshooting

• Stream hangs or never finishes: use a context with timeout and ensure you read all chunks
• Missing output: verify you’re handling ChunkTypeDelta (token deltas) and/or ChunkTypeText
• Slow UI updates: try a larger buffer or longer flush interval
• Provider issues: confirm Ollama is running and the model is pulled

Wrap‑up

You now have two paths:

• Start simple with examples/vnext/simple-streaming to understand token streaming
• Build richer, explainable systems with examples/vnext/streaming_workflow

Both rely on the same Stream primitives, so once you’re comfortable with one, the other feels natural.

If you want to go deeper, open core/vnext/STREAMING_GUIDE.md and explore advanced options like tool‑call streaming, thought visibility, and custom stream builders.
